Safety Features:
• A parachute braking system that adjusts according to speed • An electromagnetic brake system • An emergency stop button • Upper and lower limit stop system for the platform • Final mastic for stopping the system at the final height • Audible warning system for movement • System to halt operation when the door is open • Warning system for telescopic extensions • Engine fault detection system • Phase failure warning system • Anchor connection system every 6 meters • Railing and border security system • Automatic balance system for dual use • Manual platform lowering system in emergencies • Anti-rust system through hot dip galvanization • Balance system with movable legs • Polyamide wheels for easy handling • Option for a 220V socket on the panel
Technical Specifications:

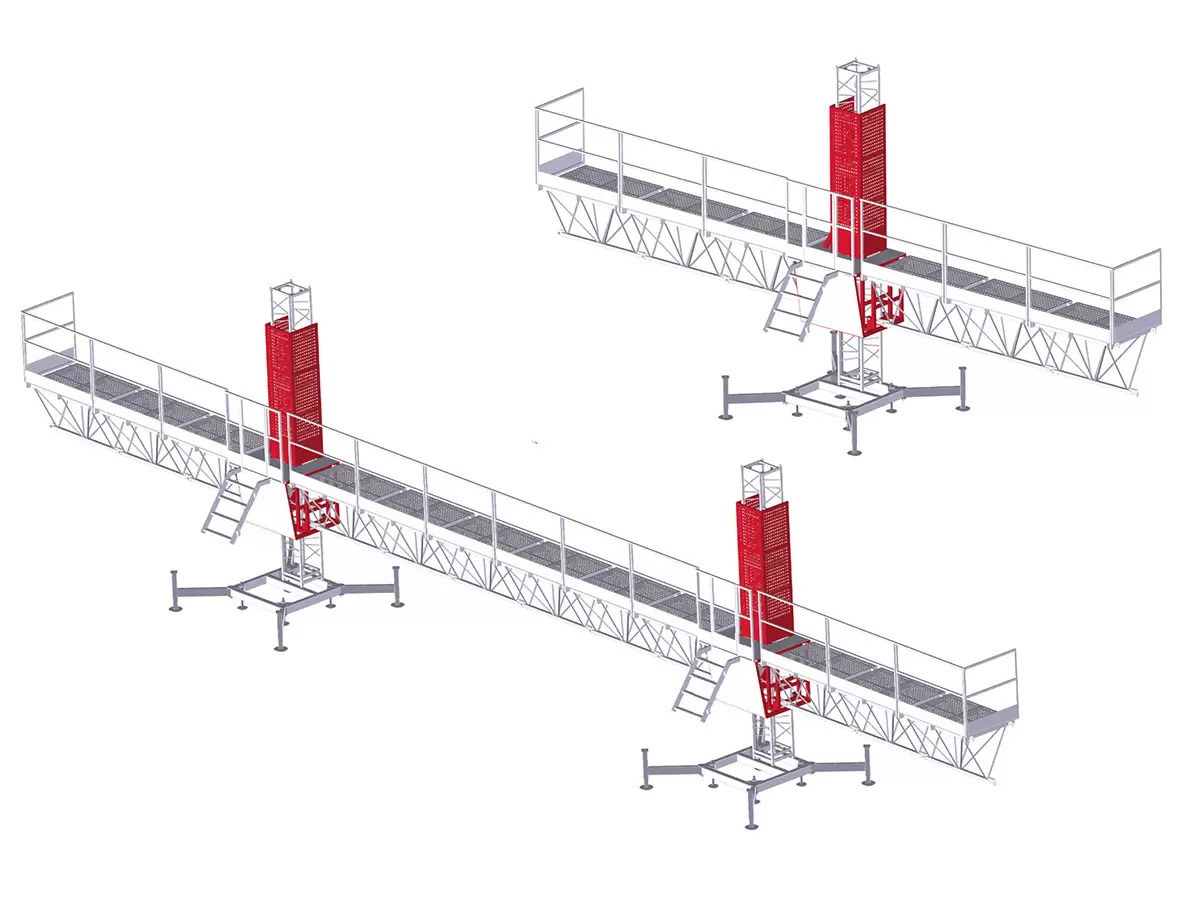

Platformsan’s facade platforms are vertical working systems propelled by electric motors on our own production rack gear, aiding in building facade coatings, sheathing, painting, plastering, and similar tasks. They offer material transportation alongside workers, quick installation, comfortable and efficient working, and time-saving capabilities. These modular systems can extend up to 10 meters on single platforms and 30 meters on double platforms.
They can reach working heights of up to 150 meters. Double platforms enable separate operation with a separate panel. Electric motors consist of a reducer-motor-electromagnetic brake system. For safety, parachute brake systems are employed, stopping the platform mechanically if all electric motors fail.
The masts, triangular platforms, and unit chassis resist corrosion due to hot dip galvanization. Gripping the mastic from 17 points extends the life of the mast and minimizes oscillation. All manufacturing, except for electric motors and panel switchgear (Schneider brand), is done in-house. Our facade platform models include C2500 and C3000.
These platforms comply with CE Certificate, 2006/42/AT, 2006/95/EC regulations, as well as TS EN 1495 + A2, TS EN 60204-1, and TS EN 12100 standards.
